Home >> 公司产品 >> 聚四氟乙烯垫片、垫圈

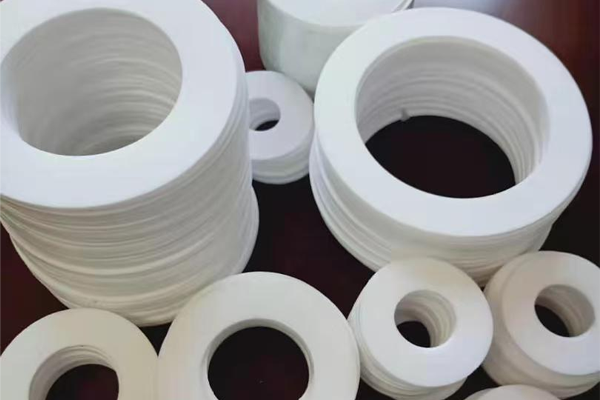

聚四氟乙烯垫片、垫圈

聚四氟乙烯（PTFE）垫片的制作过程涉及原料处理、成型、烧结、后加工等多个步骤。PTFE垫片兼具优异的化学惰性和密封性能，成为工业领域的常用密封件。

13077881871
Product Features
Product Features

01

Excellent resistance to high and low temperatures (between -70 ℃ for low temperatures, 260 ℃ for high temperatures, and up to 300 ° C for intermittent use)。

02

High intensity; Both soft and tough, can be cut and processed。

03

Good acid and alkali resistance and chemical corrosion resistance; Oil resistant, waterproof [washable].

04

Heat and climate aging resistance, as well as resistance to ozone, oxygen, light, etc。

05

High insulation performance, dielectric constant of 3-3.2, breakdown voltage of 20-50kv/mm。
Product Details
Product Details

四氟压力表垫片

M20*1.518*6*2(推荐)18*6*3(推荐)18*8*218*8*3
M14*1.512*5*2

M10*1.58.5*3*2


法兰垫片-国标PN10 机械标准


DN1040*15*3DN1545*18*3
DN2058*25*3DN2568*32*3
DN3278*38*3DN4088*45*3
DN50102*57*3DN65122*76*3
DN80138*89*3DN100158*108*3
DN125188*133*3DN150212*159*3
DN200268*219*3DN250322*273*3
DN300375*325*3DN350438*377*3
DN400490*426*3DN450532*478*3
DN500590*530*3DN600690*630*3
DN700800*720*3DN800900*820*3
DN9001000*920*3DN10001124*1020*3


法兰垫片-化工部标准


DN1551*22*3DN2061*27*3
DN2571*34*3DN3282*43*3
DN4092*49*3DN50107*61*3
DN65127*77*3DN80149*89*3
DN100162*115*3DN125192*141*3
DN150218*169*3DN200273*220*3
DN250329*273*3DN300384*325*3


法兰垫片-国标PN16


DN1551*22*3DN2061*27*3
DN2571*34*3DN3282*43*3
DN4092*49*31DN50107*61*3
DN65127*77*3DN80142*89*3
DN100162*115*3DN125192*141*3
DN150218*169*3DN200273*220*3
DN250329*273*3DN300384*325*3
DN350444*377*3DN400495*426*3
DN450555*480*3DN500617*530*3
DN600734*630*3DN700804*720*3
DN800911*820*3DN9001011*920*3
DN10001128*1020*3

application area
Areas of application
Shipbuilding
In order to achieve lightweighting of automobiles, effectively reduce costs and fuel consumption rates, major automobile companies generally adopt optimization design methods to design cars, making the materials used for large car coverings thinner and thinner. To solve the problems of insufficient local strength and stiffness caused by this, various reinforcement materials have been developed and widely used in various types of automobiles.
Steel smelting
In order to achieve lightweighting of automobiles, effectively reduce costs and fuel consumption rates, major automobile companies generally adopt optimization design methods to design cars, making the materials used for large car coverings thinner and thinner. To solve the problems of insufficient local strength and stiffness caused by this, various reinforcement materials have been developed and widely used in various types of automobiles.
Rail Transit
Aerospace field
thermal power
Machinery manufacturing
building
car
Sound barrier application
